Ickler Belt Sander Parts & Service

Please call (320) 251-8282 for current prices & parts ordering information.

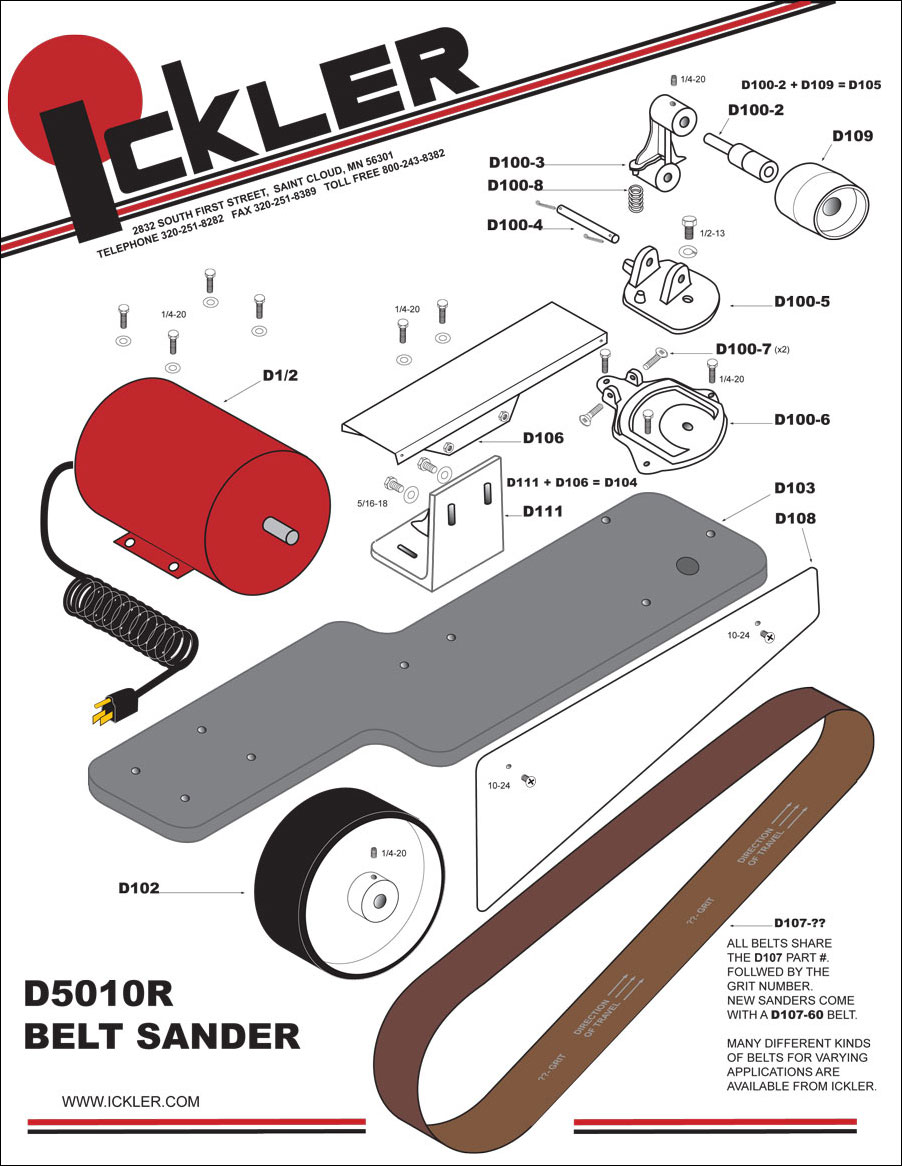

Belt Sander Parts Exploded View

Ickler Belt Sander Parts Exploded View

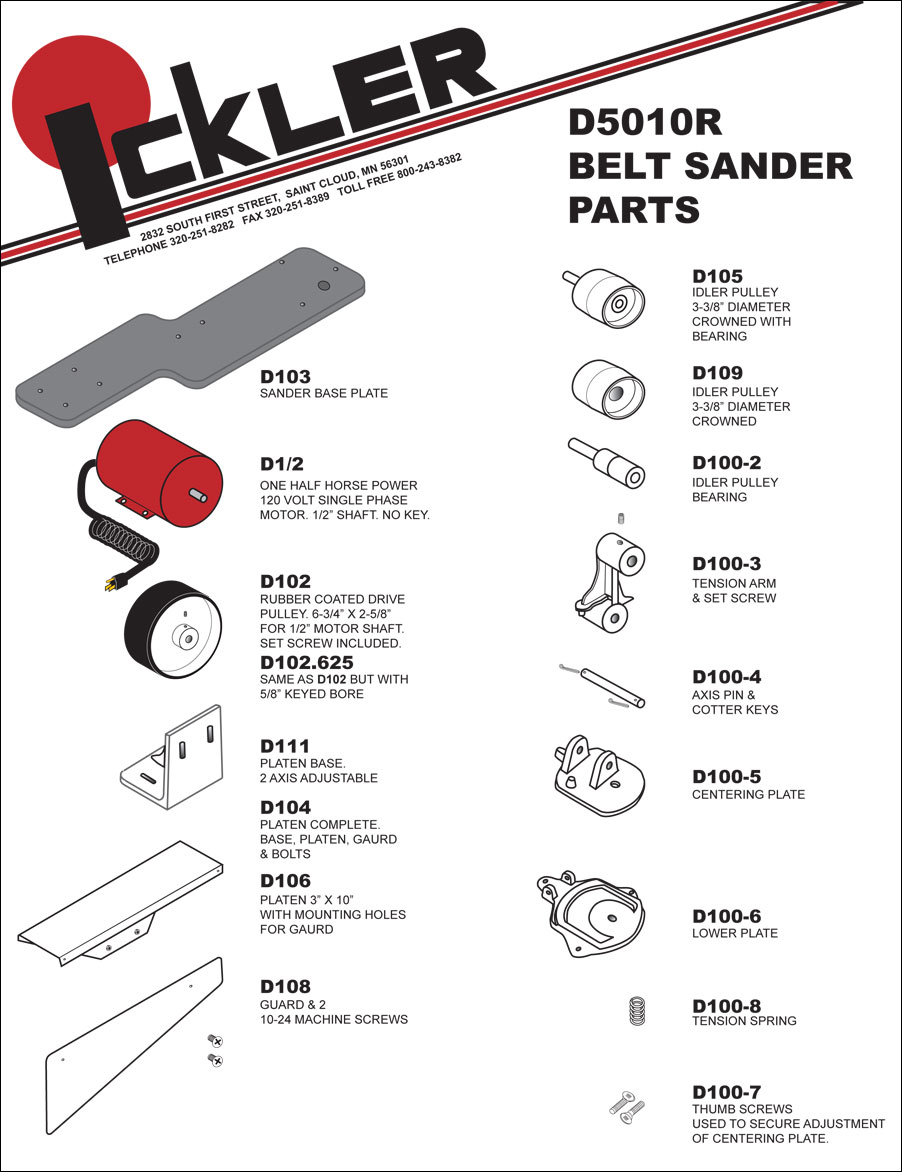

Parts Pictorial

Ickler Belt Sander Parts Pictorial

Replacement Belts

Ickler Belt Sander Belts

Parts List

Item ID Item Description
D5040R-NM 4" 1HP Belt Sander No Motor
D5040R 4 X 60" - 1 HP Belt Sander
D5010R-NM 2-1/2" - Belt Sander No Motor
D5010R 2-1/2" -1/2 HP Belt Sander
D412 4" Cord With Connectors
D411 4" Platen Base
D410 Bearings For 4" Idler
D409 4" Idler Pulley No Bearing
D408 4" Guard
D407SS-80 4 X 60 80 Grit For S.S
D407SS-36 4 X 60 36 Grit For S.S
D407SS-100 4 X 60 100 Grit For S.S
D407-80 4 X 60 Belt 80 Grit
D407-60 4 X 60 Belt 60 Grit
D407-36 4 X 60 Belts 36 Grit
D407-120 4 X 60 Belts 120 Grit
D406 4" Platen Top
D405 4" Idler Pulley & Bearing
D404 4" Platen Complete
D403 Sander Base For 4"
D402M 4" Drive Pulley Machined
D402 Rubber Covered Drive Pulley
D400-8 Backstand Spring
D400-6C Backstand Lower Casting
D400-6 Backstand Lower Plate
D400-5 Backstand Top Plate
D400-4 Backstand Pin W/2 Cotter Pins
D400-3 Arm Bracket
D400-2 Pin For 4" Idler Pulley
D400-12 Backstand Pin For 4" Sander
Item ID Item Description
D400-1 Backstand Assy - No Pulley
D400 4" Idler Pulley & Backstand
D120 Safety Kit-Platen,Guard,Screws
D114 Connectors For Sander Cord
D112 8' Cord - W/Connectors
D111 Platen Base
D110 Bearing for Idler Pulley
D109 Idler Pulley No Bearing
D108 Guard
D107SS-80 2-1/2 Belt 80 Grit For S.S
D107SS-40 2-1/2 Belt 40 Grit For S.S
D107SS-36 2-1/2 Belt 36 Grit For S.S
D107SS-120 2-1/2 Belt 120 Grit For S.S
D107SS-100 2-1/2 Belt 100 Grit For S.S
D107A-80 2-1/2 X 48 Belt 80 Grit Zirc
D107A-60 2-1/2 X 48 Belt 60 Grit Zirc
D107A-40 2-1/2 X 48 Belt 40 Grit Zirc
D107-80 2-1/2 X 48 Belt 80 Grit
D107-60 2-1/2 X 48 Belt 60 Grit
D107-400 2-1/2 X 48 Belt 400 Grit
D107-36 2-1/2 X 48 Belt 36 Grit
D107-240 2-1/2 X 48 Belt 240 Grit
D107-120 2-1/2 X 48 Belt 120 Grit
D106 Platen Top
D105 Idler Pulley & Bearing
D104 Platen Complete-Top,Base,Bolts
D103 Sander Base For 2-1/2"
D102M Drive Pulley Casting Mach
D102.625 Rubber Pulley 5/8" Bore
D102 Rubber Covered Drive Pulley
Item ID Item Description
D100-8 Backstand Spring
D100-6 Backstand Lower Plate
D100-5C Backstand Top Plate Casting
D100-5 Backstand Top Plate
D100-4 Backstand Pin W/2-Cotter Pins
D100-3 Backstand Arm Bracket
D100-12 Backstand Pin
D100-1 Backstand Assembly W/O Pulley
D100 Idler Pulley And Backstand
D1/2C 1/2 H Motor W/Cord & Switch
D1/2 1/2 H Motor For The D-5010R
D1 1 H.P Motor For The D5040R
99800 Steel Thumb Screw
88436M01 5/16" Flat Washer
88435M01 1/4" Flat Washer
65060 1/2 x 1 Hex Head Capscrew
65059 1/2 x 3/4 Hex Head Capscrew
65050 1/2-13 x 1 Hex Head Cap Screw
65016 5/16 x 3/4 Hex Head Capscrew
65000A 1/4 x 5/8 Hex Head Capscrew
532 1/2" Lock Washer
4X308-2 Eyelet Connector
4125-0004 Toggle Switch For 1/2 HP Mtr
3KG34 Connector
3731 Socket Set Screw
1X878 Toggle Switch For 4" Sander
1FD92 8" Power Supply Cord
1170 10-24 x 1/2 Pan head Screw
1021 Hammerlock Cotter Pin
00602 1/4 x 1 Hex Head Capscrew
